Product Description

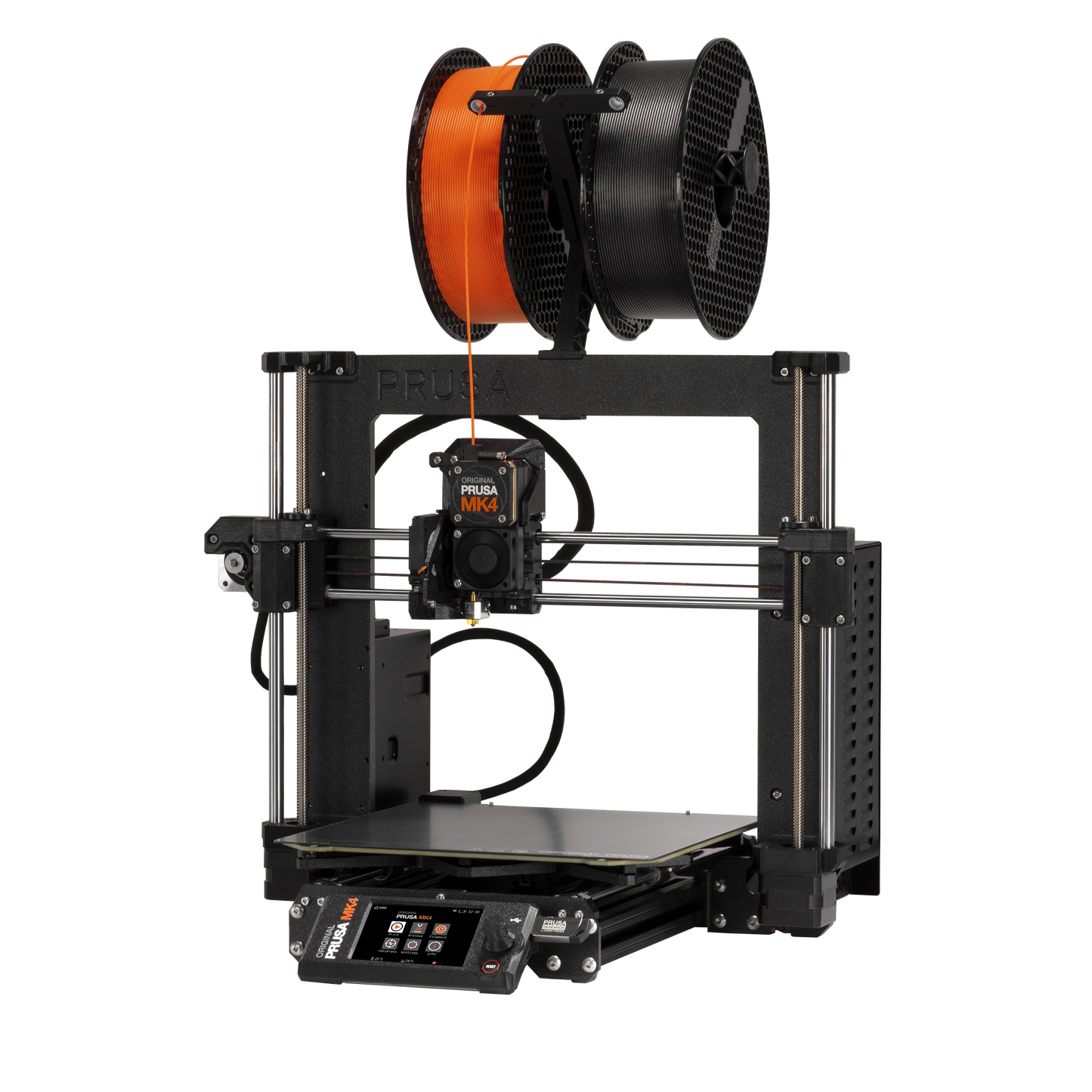

Prusa MK4 is the latest edition of our flagship 3D printing workhorse. It combines the reliability and safety features of its predecessors with high-speed performance enabled by Input Shaper support. It brings plenty of new features like a perfect smooth first layer thanks to the Loadcell sensor (no manual adjustments needed), remote printing, quick-swap nozzles, customizable UI with a one-click printing option, and much more.
The MK4 will consistently deliver a perfect smooth first layer thanks to the Loadcell sensor (no manual adjustments needed). The next-gen extruder (Nextruder) and 32-bit connected platform provide many quality-of-life improvements like remote printing, quick-swap nozzles, and customizable UI with a one-click printing option.
The package includes a Smooth PEI print sheet.
Technical Parameters
| Build Volume | 250 x 210 x 220 mm | 9.84 x 8.3 x 8.6 in |
| Filament diameter | 1.75 mm |
| Layer height | 0.05-0.30 mm |
| Mainboard | Custom 32-bit xBuddy electronics with STM32 |
| Stepper Drivers | Trinamic 2130 |
| Stepper motors | Precise 0.9° X,Y stepper motors (prevents VFA) |
| Extruder | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Extruder electronics | Custom breakout board for connecting fans, thermistors and other parts. |
| Filament path | Aluminum heatsink, all-metal hotend |
| Drive system | Nextruder Planetary Gear System, 10:1 gearbox ratio |
| Nozzle Diameter | 0.4mm (default) / other nozzle diameters supported |
| Max nozzle temperature | 290 °C / 554 °F |
| Max heatbed temperature | 120 °C / 248 °F |
| LCD screen | 3.5″ graphic 65k color screen |
| Connectivity | Optional ESP Wi-Fi module (delivered with the printer) |
| Print medium | USB drive / LAN / internet via Prusa Connect |
| Advanced sensors | Filament sensor, Loadcell sensor, Power panic, 4 high-precision thermistors (genuine Semitec) + fan motors RPM monitoring |
| Print surface | Magnetic heatbed with removable PEI spring steel sheets |
| Bed calibration | Automatic, Mesh Bed Leveling (only on print area) |
| Supported materials | PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN, composites and more |
| Printer dimensions (without spool) | 7 kg, 500×550×400 mm; 19.6×21.6×15.7 in (X×Y×Z) |
| PSU | 240W, custom made by Delta with Power Panic HW |
| Power consumption | PLA settings: 80W / ABS settings: 120W |

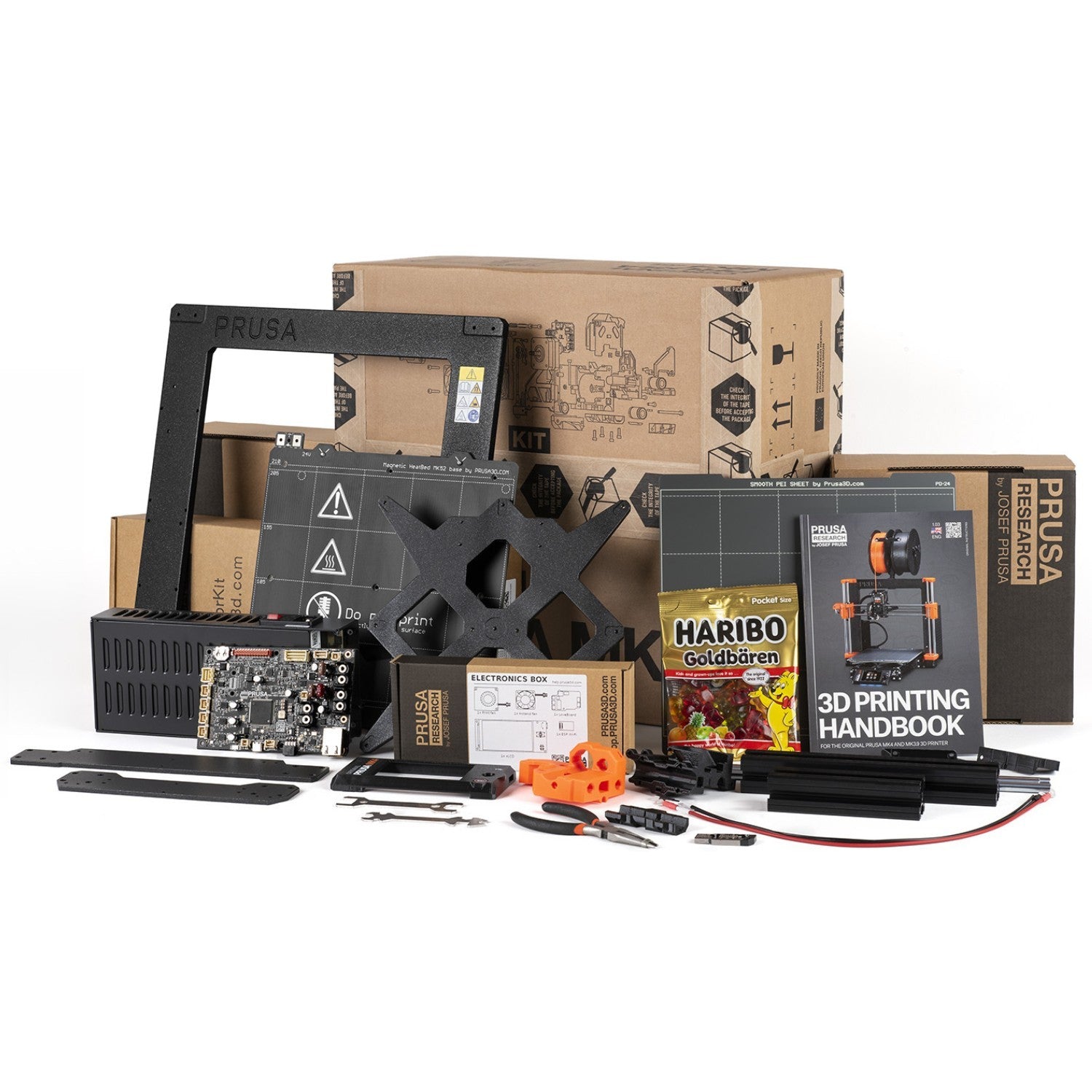

Basic package includes:

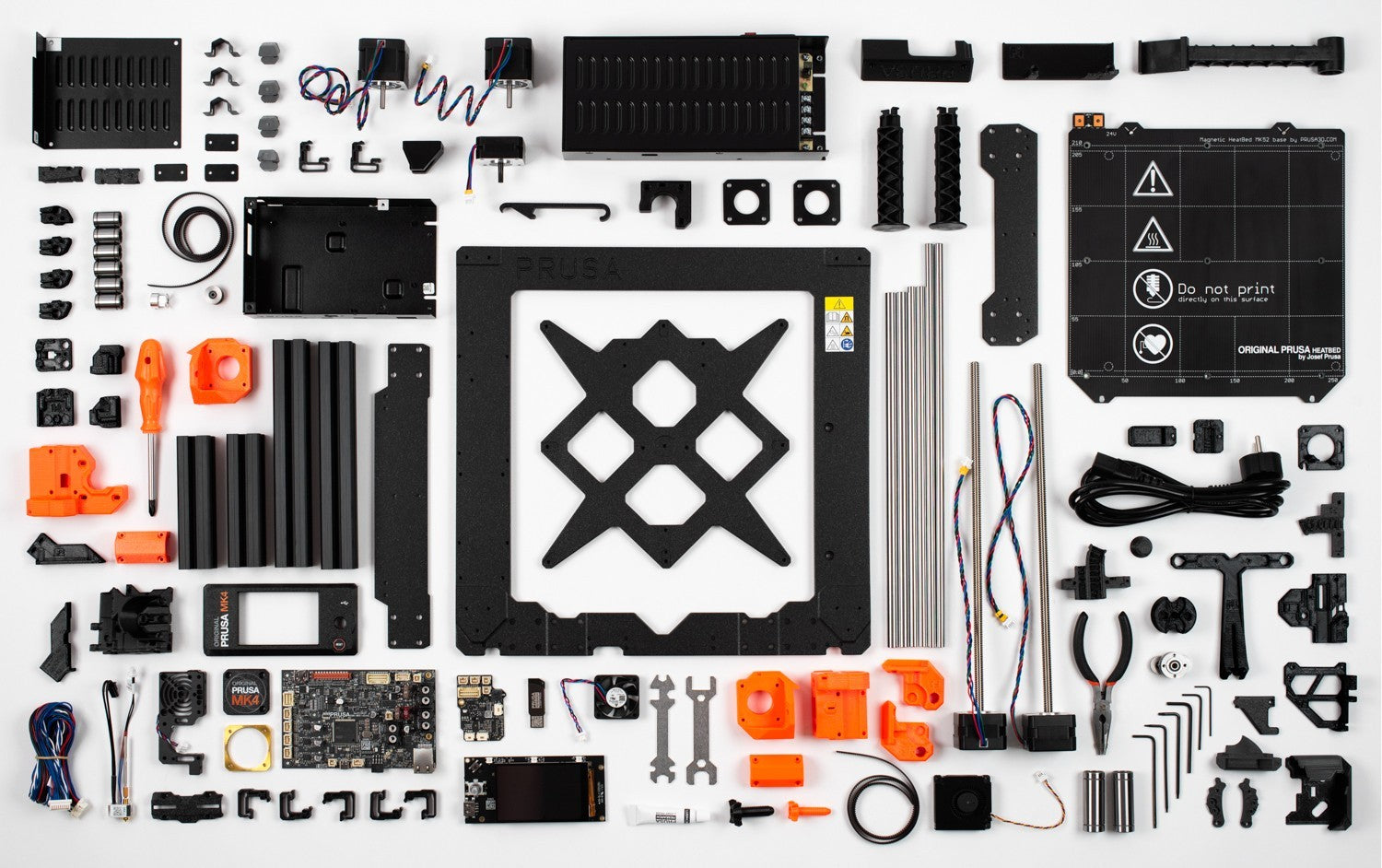

- Original Prusa MK4 kit 3D printer
- Double-sided Smooth PEI Print Sheet
- Free sample of Prusament PLA ~ 2x25 g
- 3D Printing Handbook
- USB drive with sample prints (G-codes)
- Toolset: Uni-wrench, 13-16 wrench, Philips screwdriver, Nose pliers, Allen and torx keys
- Alcohol-saturated wipes, acupuncture needle
- Spoolholder
- Spare parts package
- Prusa lubricant for bearings
- A pack of Haribo gummy bears
- Manufacturing protocol
