Product Description

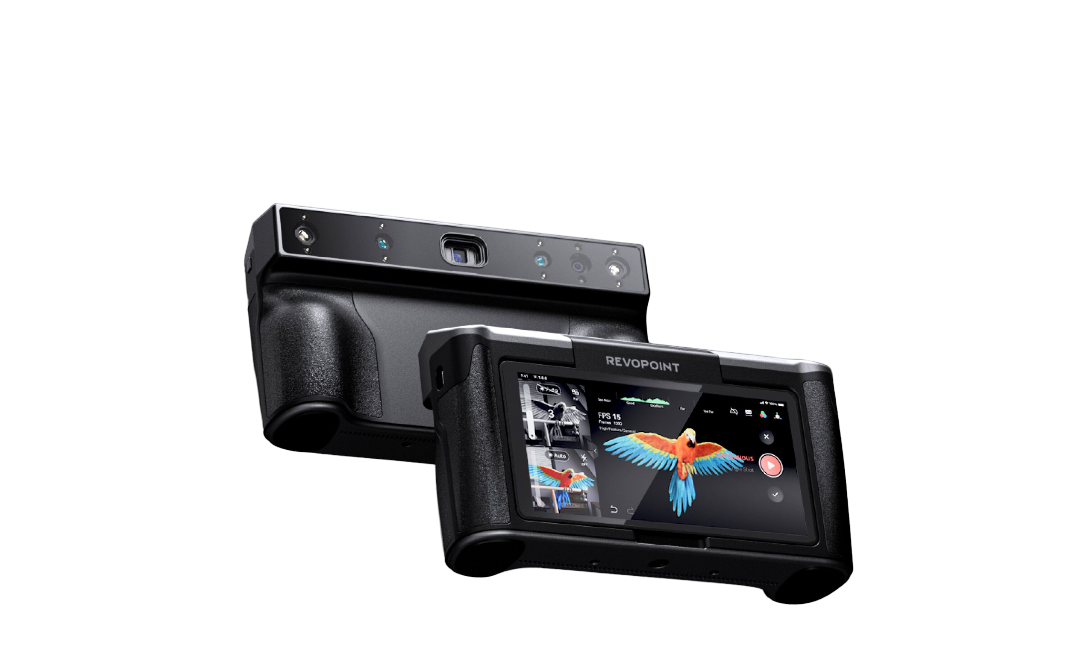

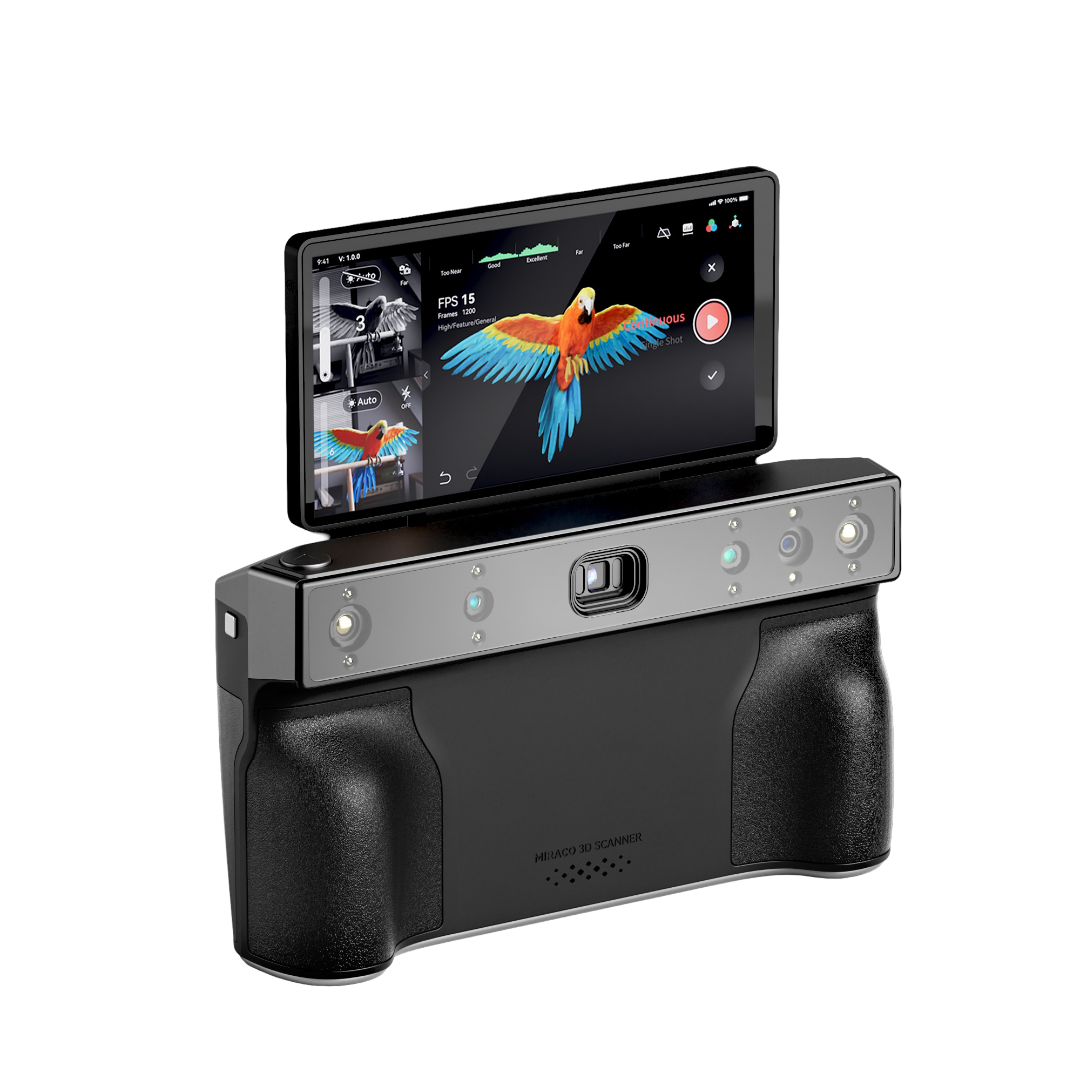

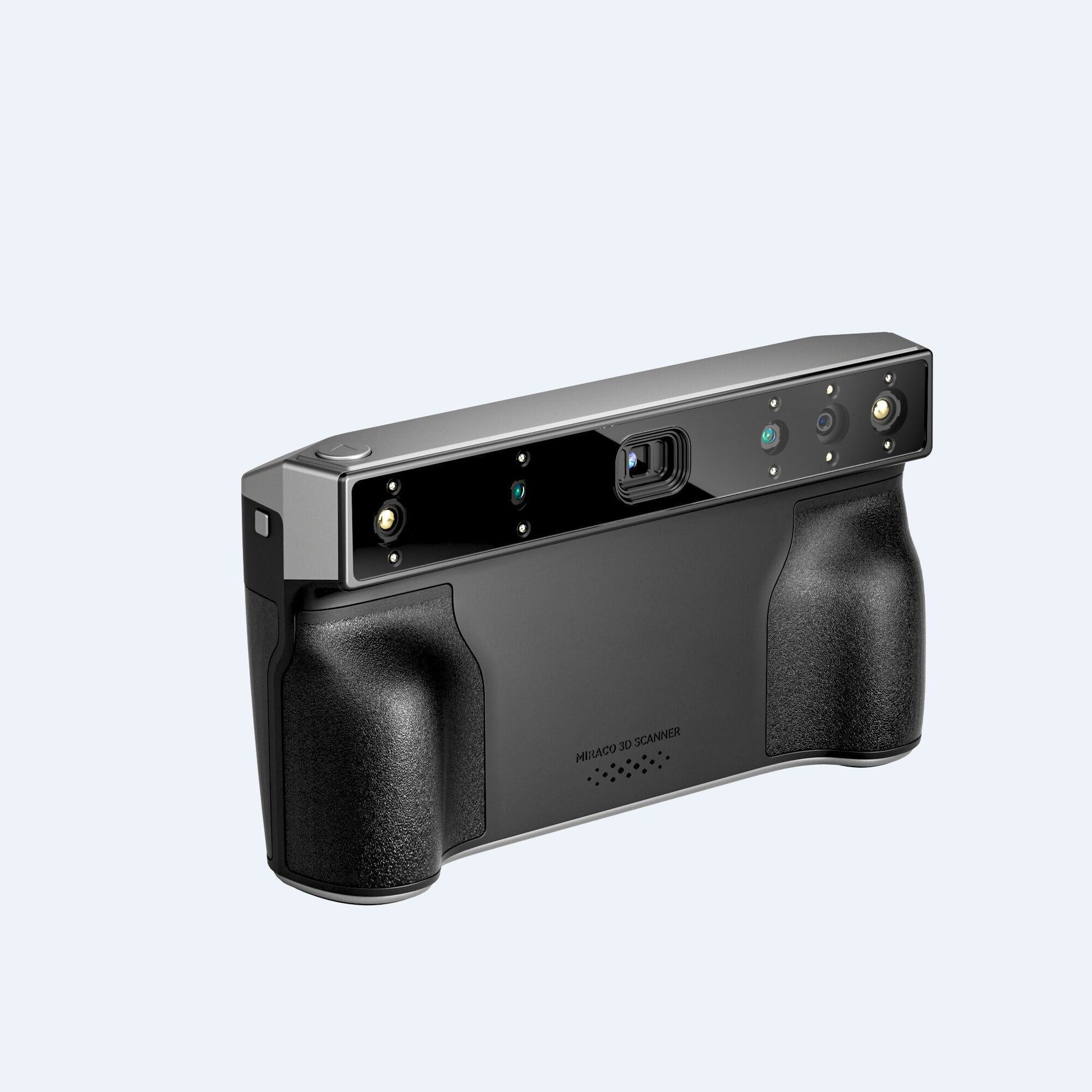

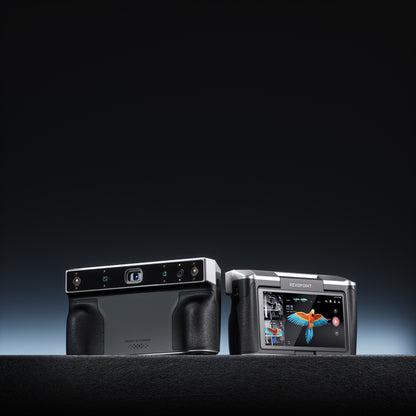

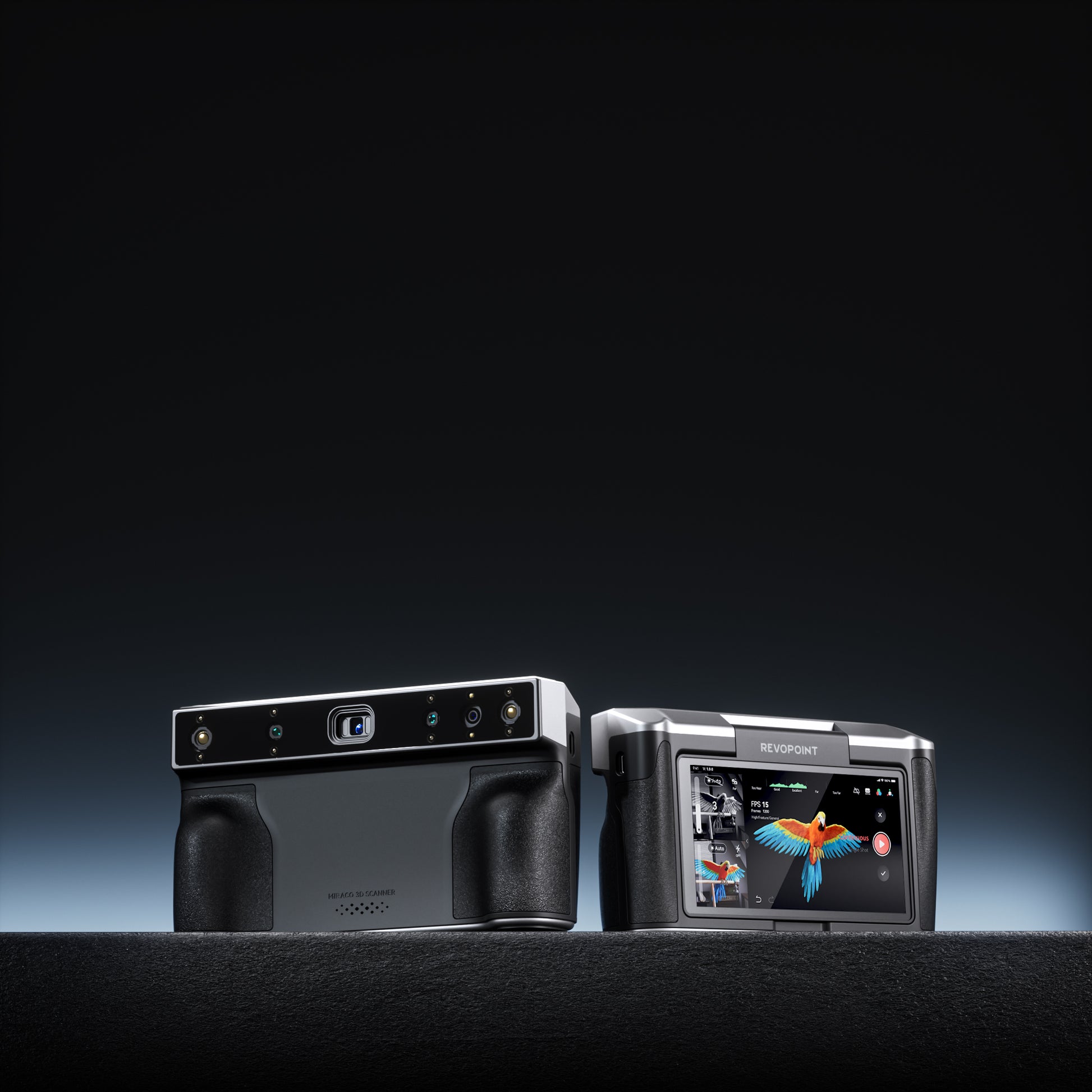

Introducing our first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.
Key Features
| Product Name | Revopoint MIRACO | Technology | Quad-camera Infrared Structured Light |
| Single-frame Accuracy, up to | 0.05 mm | Fused Point Distance | 0.05 mm |
| Single Capture Area at Nearest Distance | 28 x 53 mm at 100 mm | Single Capture Area at Furthest Distance | 975 x 775 mm at 1000 mm |
| Two Capture Modes | Single-shot Mode , Continuous Capture Mode | Scanning Speed，up to | 15 fps |
| Minimum Scan Volume | 10 x 10 x 10 mm | Maxmium Scan Volume | 4000 x 4000 x 4000 mm |

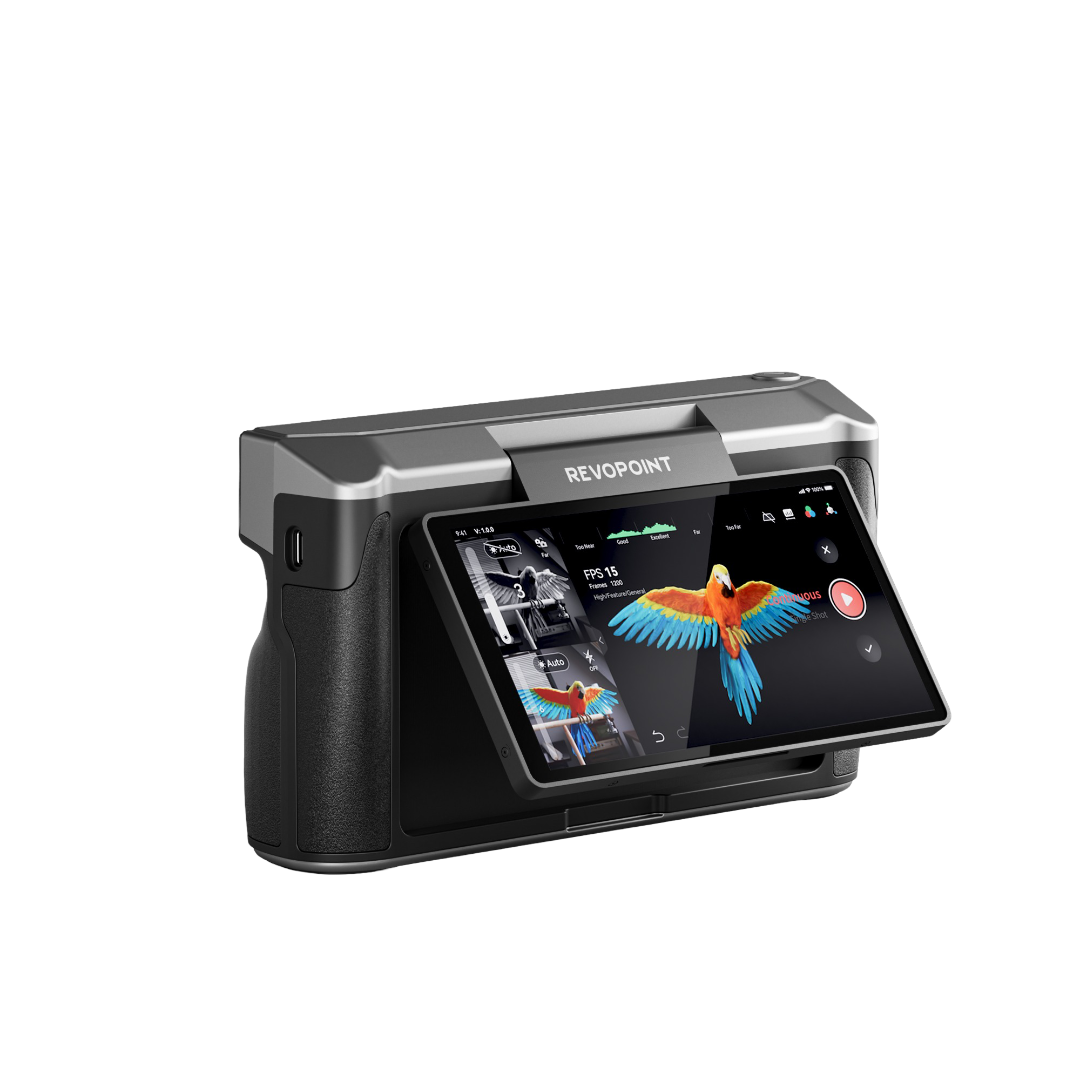

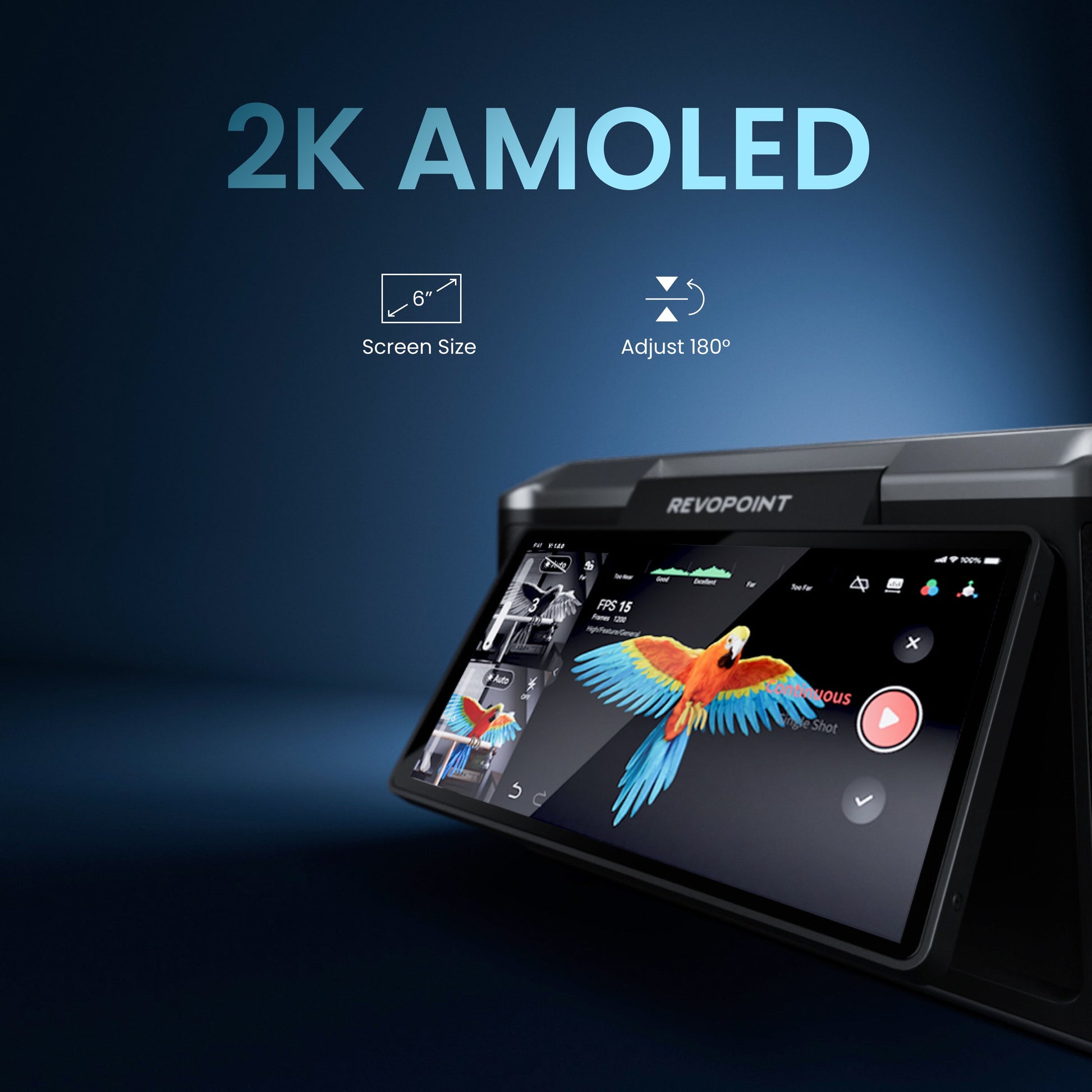

| Working Distance | 100 - 1000 mm | Screen | 6” 2k AMOLED Touch Screen |
| Auxiliary Lighting | Infrared Fill Lights, Flash LEDs | 3D Light Source | Class 1 Infrared Light |
| Storage | 256 GB eMMC | Position Sensors | 9-axis IMU |
| Memory (RAM) | 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro) | RGB Camera Resolution，up to | 48 Megapixels |
| Scanner Weight | 750 g | Dimensions（L x W x H） | 200 x 50 x 110 mm |
| Battery Capacity | Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning | CPU | 8-core CPU，2.4 GHz |
| Tracking Methods | Feature , Marker | Protection Rating | IP45 |
| Connector Type | USB Type-C | Wi-Fi Type | Wi-Fi 6 |
| Compatible Systems | Windows 10/11, macOS | Operating System | Native Android System |
| Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects. | Scanning Environment | Indoors and Outdoors |
| Output Formats | PLY, OBJ, and STL | 3D Printing Compatible | Yes |

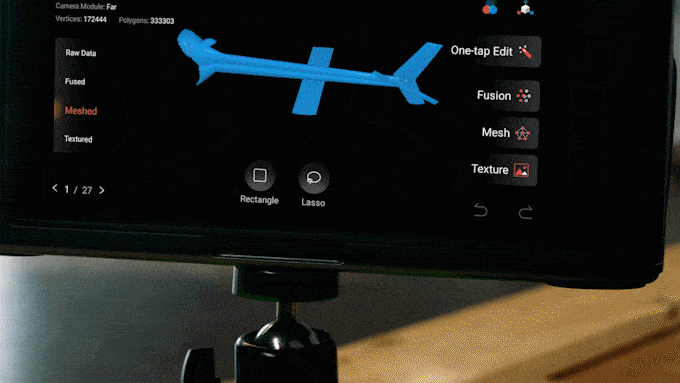

| Built in Chip Computing | Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing | PC Requirements | No PC required |
